UVB LED CHIP specifications
| UV-B | POWER | Dominant Wavelength | Optical Power | IF | VF | WHOLE SIZE | VIEW ANGLE | LENS | SUBSTRATE | JUNCTION TEMPERATURE |
| LN-SMD3535UVB-P3D | 3.0W | 290-300nm | 50-70mW | 350mA
(Max=500mA) | 4-5V | 3.5*3.5MM | 120° | QUARTZ GLASS LENS | ALN Coppering | 60-80C |
| 300-306nm |
| 306-310nm |
| 310-315nm |
| LN-SMD3535UVB-P3 | 3.0-5.0W | 290-300nm | 80-120mW | 350mA
(Max=700mA) | 4-5V | 3.5*3.5MM | 120° | QUARTZ GLASS LENS | ALN Coppering | 60-80C |
| 300-306nm |
| 306-310nm |
| 310-315nm |
LED CHIP Design Advantage
- Quartz glass package
- High radiant flux
- Narrow Wavelength
- Inorganic & Nitrogen package
- Low thermal resistance
UVB CHIP Application
- photometer
- Curing and Coating
- Medical treatment
- photosensitive

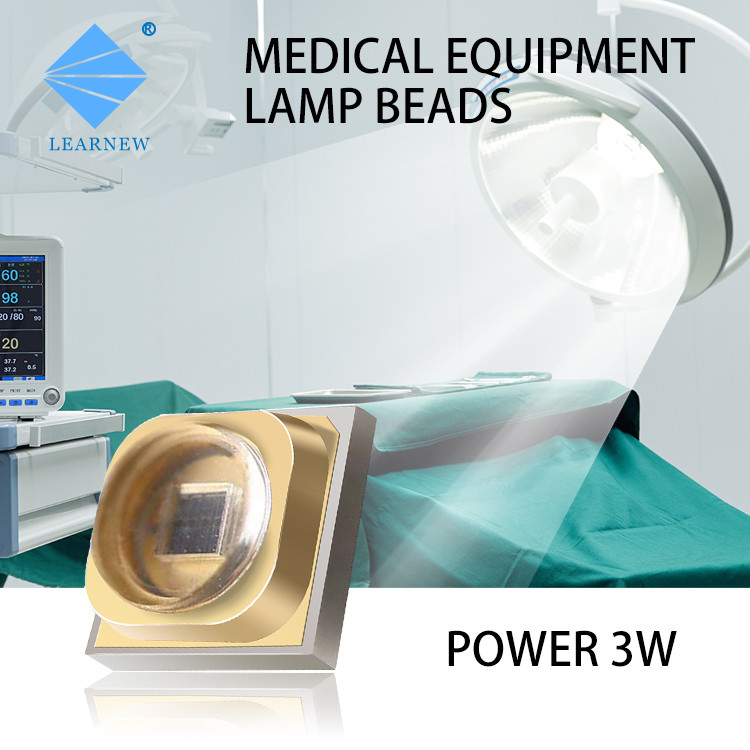

3535 LED chip picture
